Self Drilling Anchor Bolts (SDA)
The Self-Drilling Anchor Bolts System is comprised of a hollow threaded bar with an attached drill bit that can perform drilling, anchoring and grouting in a single operation. The hollow bar allows air and water to freely pass through the bar during to remove debris and then allow grout to be injected immediately after drilling is completed.

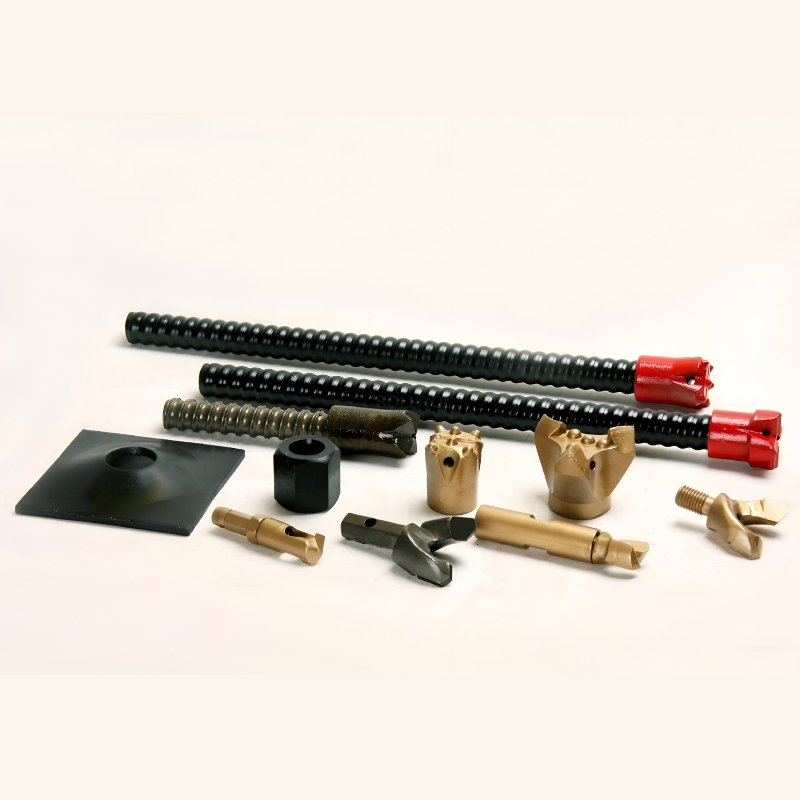

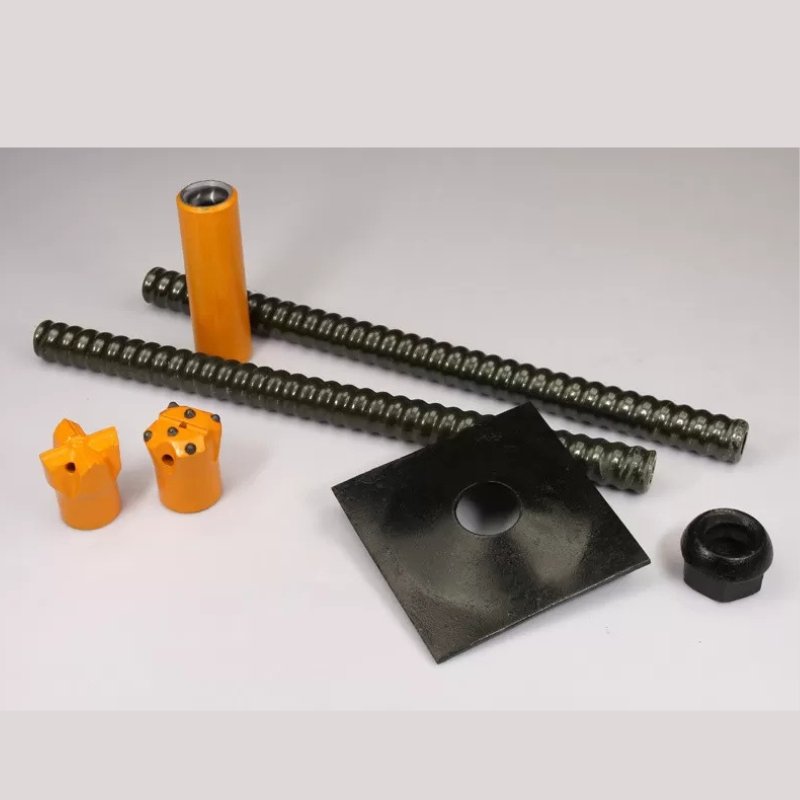

Self drilling anchor bolts is composed of hollow anchor bar, coupler, nut, drill bit, plate, and centralizer. It can combine drilling, grouting and anchoring in one process. Self-drilling anchors are the advanced type of fully threaded hollow steel tube rods. SDA is a fully threaded rod with an inner and outer diameter hollow steel tube.
It is provided with a sacrificial drill bit at the end to facilitate the drilling process, coupler to join two SDA bars, screw nut, base plate, etc.
The hollow bar allows air and water to freely pass through the bar during drilling to remove debris and then allow grout to be injected immediately after drilling is completed. Grout fills the hollow bar and completely covers the entire bolt. Couplers can be used to join hollow bars and extend the bolt length while nuts and plates are used to provide the required tension.
Grout fills the hollow bar and completely covers the entire bolt. Couplers can be used to join hollow bars and extend the bolt lenght while nuts and plates are used to provide the required tension.
SHAKTI Rock Bolts are the largest manufacturers and suppliers of all types of Self Drilling Anchor Bolt System in India.
SHAKTI INDUSTRIES Offers Self Drilling Anchors in variants of R25, R32, R38, R51 and T76 and their accessories including the Anchor Nut, Anchor Plate, Anchore Couplers and Drilling bits.
